UV Module System

UV Module system UV SYSTEMS

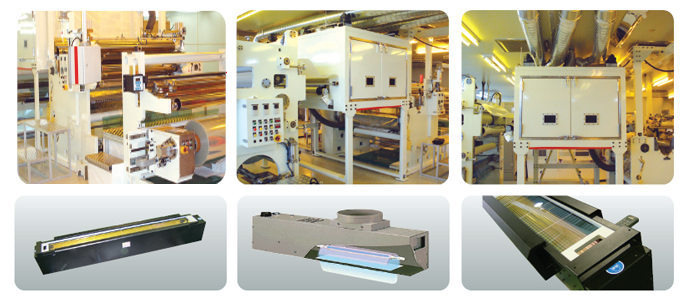

Applications
Various optical films (Prism sheet, reflector sheet, diffusion sheet, etc)
Various graphic fields (Offset, Gravure, opv, screen, etc)
PDP surface UV Curing process and other various UV Curing process.

Features

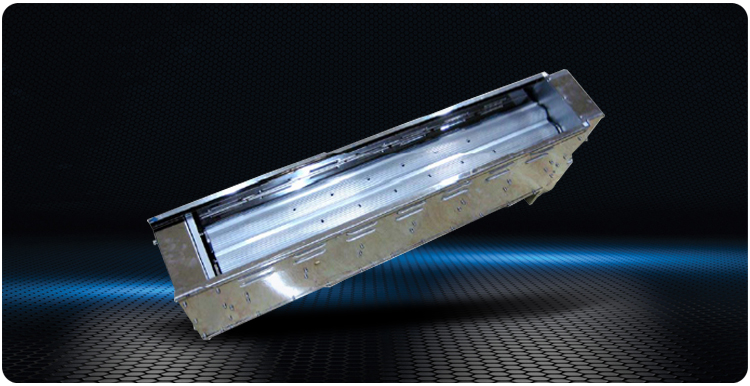

Easy installation with compact designed UV radiation module and power device.
Standardized 1~40KW lamps modules are avalable for various applications.
Easily construct UV Curing systems without basic concept about print machines, coating system, fpd producing lines with this module UV system.
Cost down the production cost by only using necessary UV Module and power device.
Supporting various interface for connecting to other system.
Prevent heat damage of substrate's surface by operating shutter open when in operation and close when in pause.
Built-in shutter at inner of head lamps do open/close process and optimum at roll-to-roll process.
Easy lamp exchange by applied sliding type's lamp housing

Specifications
Description UVMH401
UVMF401		 ... UVMH1001
UVMF1001		 UVMH1201
UVMF1201		 UVMH1401
UVMF1401		 UVMH1601
UVMF1601		 UVMH1801
UVMF1801		 UVMH2001
UVMF2001		 option
Module
Size		 (L) 747 ... 1,347 1,547 1,747 1,947 2,147 2,347
(W) 505 ... 505 505 505 505 505 505
(H) 205 ... 247 247 247 247 247 247
Module material [SUS or Steel]
Valid curing
width (mm)		 300 ... 900 1,050 1,200 1,400 1,600 1,800
UV
LAMP		 Mercury ○ ○ ○ ○ ○ ○ ○ ○ ○
Metal
Halide		 ○ ○ ○ ○ ○ ○ ○ ○ ○
Arc Length 400 ... 1,000 1,200 1,400 1,600 1,800 2,000 2,200
Overall
Length		 520 ... 1,120 1,320 1,520 1,720 1,920 2,120 2,320
Lamp Load 60~160 ○
Lamp
Power 		4 ... 10 12 14 16 18 20 ○
Cooling Type Forced Air-cooling 850
Exhaust Fan ○ ○ ○ ○ ○ ○ ○ ○
Reflector Aluminum ○ ○ ○ ○ ○ ○ ○ ○ ○
Cold Mirror ○ ○ ○ ○ ○ ○ ○ ○ ○
Cold Filter ○ ○ ○ ○ ○ ○ ○ ○ ○
Shutter ○ ○ ○ ○ ○ ○ ○ ○ ○
Shutter
Operation Type 		Pneumatic Air
Power Supply   - Electronic Ballast
  - Magnetic UV Transformer
  - Condenser Type : Constant Current Control
  - Choke Type : Constant Wattage Control
  - Hybrid UV Transformer
  - Feedback Type : Variable Power Control 		○
Control
interface		 Control
signal		   - PLC or other remote (external) control signals for auto control system
  - Lamp ON signal
  - Lamp OFF signal
  - Shutter OPEN signal
  - Shutter CLOSE siganl 		Standard
Output
signal		   - Standby signal
  - Lamp on confirming signal
  - Lamp on Failure signal
  - Shutter error signal
  - Cooling fan error signal
  - Overheat alarm signal 		Standard
1. Above specification can be modified or changed without notice for improving products performance
1. and quality.
2. In addition to above specification, other specification also available.
