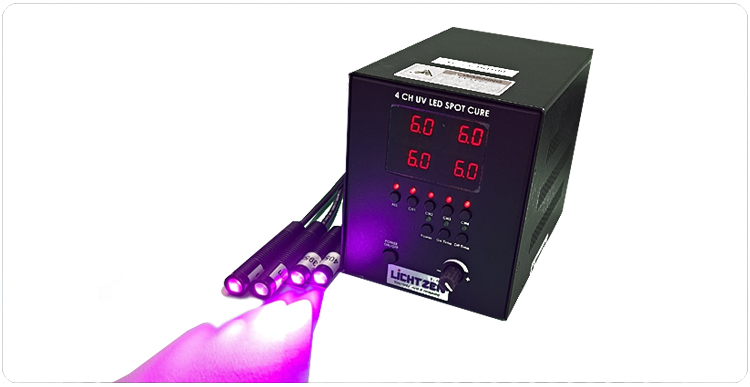

| Model |
INNOCURE HQ-100 |
| Input Power/ Hz |
AC220V, 50/60Hz (DC 12V 6A) |
| # of Channels |
1CH ~ 4CH (Optional) |
| Available Wavelength |
365nm, 385nm, 395nm, 405nm |
| LED Heads |
1 to 4 individual & interchangeable to any channel. |
| LED Head Length |
120mm (Standard), 60mm / 80mm (Optional) |
| Curing Area |
4mm (@ W.D : 13mm) |
| Cooling Method |
Natural cooling |
| Intensity Level |
0.1% ~ 100% |
| External Control |
RS-232C, I/O |
| Features |
* Available in 1 to 4 channel configurations individually or simultanenously
* Set individual outputs per channel
* Set On/Off time by channel
* Track LED operating time track |

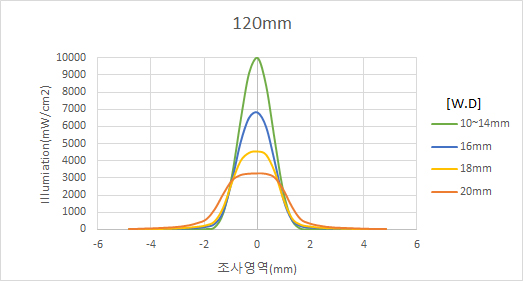

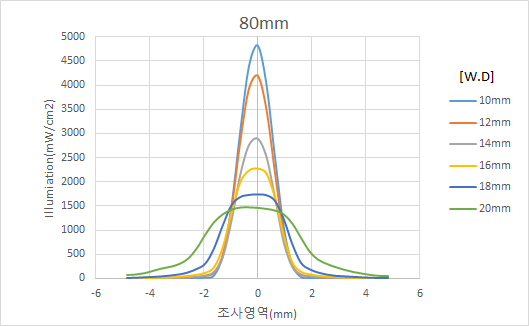

| Peak UV Intensity by Irradiation Area |
* Head 120mm → 10,000 ㎽/㎠
* Head 80mm → 4,700 ㎽/㎠ |
  |
|
|
UV LED Spot Type
