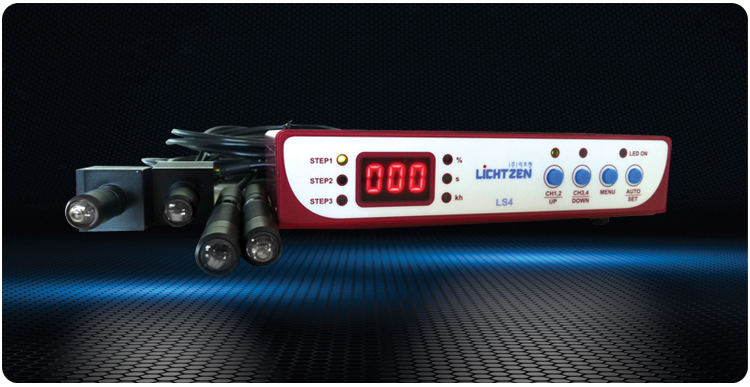

LS4

UV LED Spot Type
LS4 is a compact and solid designed Spot UV Curing device, providing high UV intensity and high reliability at reasonable price
Features
Excellent Energy Efficiency
Instant light on is available without any warm up time.
Eco-Friendly system, no mercury required, no ozone generation
Compact size
Reasonable price

Item Description
Available Wavelength 365nm ± 5nm
*395nm, 385nm, 405nm (option)
Curing Area 3mm, 4mm, 6mm,8mm, 12mm (option)
Cooling Method Natural cooling, Fan cooling (option)
Input Power/ Hz AC 220V (±10%), 50/60Hz (DCV/4A~DC48V/4A)
Power Consumption 20W@100% output
Working Temperature/Storage Temperature Working Temp: +5˚C ~ +35˚C
Storage Temp : -10˚C ~ +50˚C (no freezing and condensation)
Working Humidity/ Storage Humidity Working Humi./ Storage Humi: 30% ~ 85% RH
(no freezing and condensation)
Dimension (L x W x H) Controller: 164 x 110 x 35 mm
Weight Controller: 0.38 [Kg]
No Load Power Consumption 300mW
Peak Wavelength
@Distance		 9mm 10,000mW/㎠ *Power: 100%
*Temperature : 25˚C
*Not guaranteed
(This data is for reference only.)
Measuring light meter : USHIO UIT 250
10mm 9,000mW/㎠
17mm 3,500mW/㎠
20mm 1,800mW/㎠
