Face type UV LED

UV LED Face type UV LED

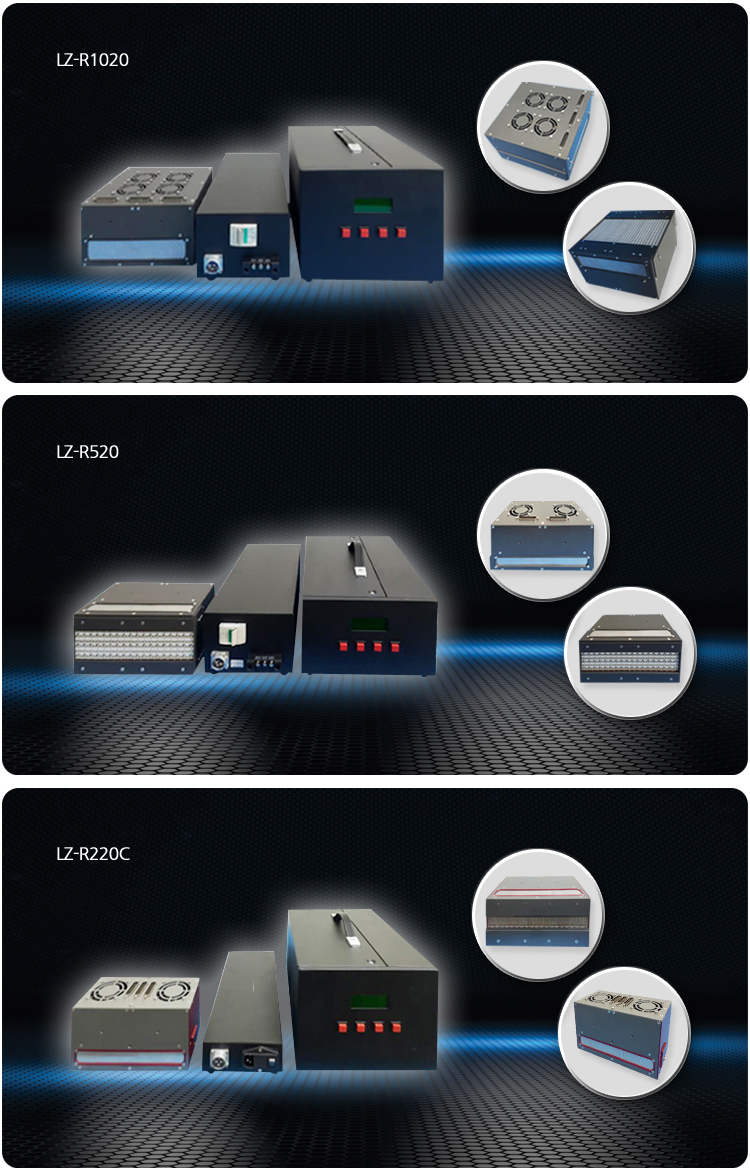

MODEL LZ-R 1020 LZ-R 520 LZ-R 220C Etc
Type Area Type Area Type Area Type
Irradiation Area 100*200㎜ 50*190㎜ 20*190㎜
UV Intensity 1,700㎽/㎠ 1,500㎽/㎠ 4,000㎽/㎠
UV Wavelength 365㎚ 365㎚ 365㎚+385㎚ 385,395,405㎚
Option

MODEL LZ-R 1020 LZ-R 520 LZ-R 220C Etc
Cooling Method Forced Air Cooling (FAN)
Input Power AC90~265VAC, 50/60Hz

Dimensions
(L*W*H)		 222*218*125
373*243*220
369*162*130		 222*123*124
243*353*170(?)
369*162*130		 203*98*124
353*243*220
365*142*70		 Head
Controller
Power Supply
Working Temp
Storage Temp
 Working Temp. : +5℃ ~ +35℃
Storage Temp. : -10℃ ~ +50℃

No freezing/condensation
주요 기능 * Dimming Control : 1% ~ 100%
(Main functions Range : 30% ~ 100%)
* PLC outside control
* RS-232C & RS-485 communication
* Programmable control system
* Timer : Count Up mode (1~999sec)
* Continuous investigation function : Invest only when time set
* Infinite investigation function : Invest continually
