| Model |
LZL-FL-115115-C |
| Curing Area |
100×100mm (Effective area: WD=30) / 150×150mm (Total area) |
| Power Consumption |
500 ~ 1,000㎽/㎠ (Vary over distance) |
| Available Wavelength |
365, 385, 395, 405nm (Optional) |
| Cooling Method |
Air-cooled System (Fan) |
| Intensity Level |
0.1% ~ 100% |
| Simulation Data |
 |
| Features |
* Perfect for laboratory test chamber (Flood type)
* Working distance of UV LED can range from 2 mm up to 50 mm
* Timer : On/Off delay time
* RS-232C Communication
* Foot switch On/Off control |
|
|

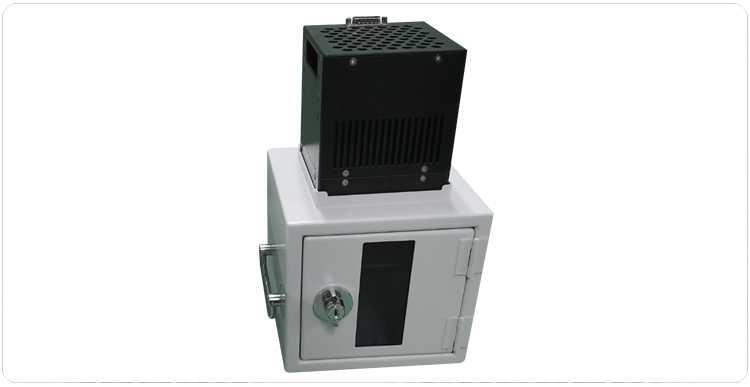

UV LED Flood Type
