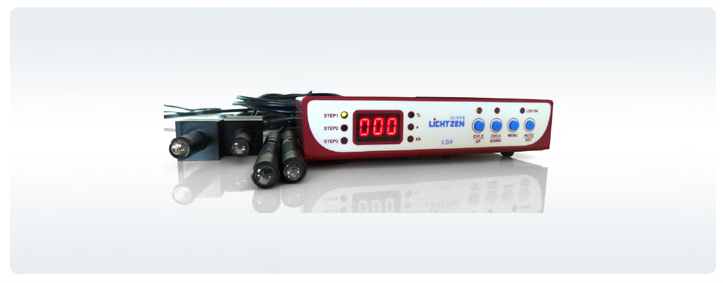

| | LS4 is a compact and solid designed
Spot UV Curing device, providing high UV intensity
and high reliability at reasonable price |
|
 |
 |
Excellent Energy Efficiency |
|
Instant light on is available without
any warm up time. |
|
Less heat generation. No heat- damage
to products. Working temperature: 0~50 °C |
|
Eco-Friendly system, no mercury required,
no ozone generation |
|
Compact size |
|
Reasonable price |
| Item |
Description |
| Available Wavelength |
365nm ± 5nm
*395nm, 385nm, 405nm (option) |
| Curing Area |
3mm, 4mm, 6mm,8mm,
12mm (option) |
| Cooling Method |
Natural cooling,
Fan cooling (option) |
| Input Power/ Hz |
AC 220V (±10%),
50/60Hz (DCV/4A~DC48V/4A) |
| Power Consumption |
20W@100% output |
| Working Temperature / Storage
Temperature |
Working Temp: +5˚C ~ +35˚C
Storage Temp : -10˚C ~ +50˚C (no freezing
and condensation) |
| Working Humidity / Storage Humidity |
Working Humi./ Storage Humi:
30% ~ 85% RH
(no freezing and condensation) |
| Dimension (L x W
x H) |
Controller: 164
x 110 x 35 mm |
| Weight |
Controller: 0.38
[Kg] |
| No Load Power Consumption |
300mW |
| Output Current |
700mA / channel |
조사거리별
피크조도
(Peak Wavelength
@Distance) |
5mm |
5,000mW/cm2 |
*Power:
100%
*실온: 25˚C
*보증 값은 아님
(This data is for reference only.)
측정광량계: USHIO UIT150 |
| 7mm |
8,000mW/cm2 |
| 10mm |
5,500mW/cm2 |
| 15mm |
1,800mW/cm2 |
|
|
|
|
|
|
