Chip bonding, optical components adhesion, partial, curing of screen prints. |
|
Fixing electric components, adhesion of glass products (Watch, lens, etc) |
|
Finishing of coil winding (Bonding), Sealing of liquid crystal |
|
Optimum for electro components protection coating |
|
Bonding optical fiber, metals and plastics, etc |
|
Red-short material's adhesion, medical devices components adhesion |
|
Others where partial curing is needed |
|
 |
| |

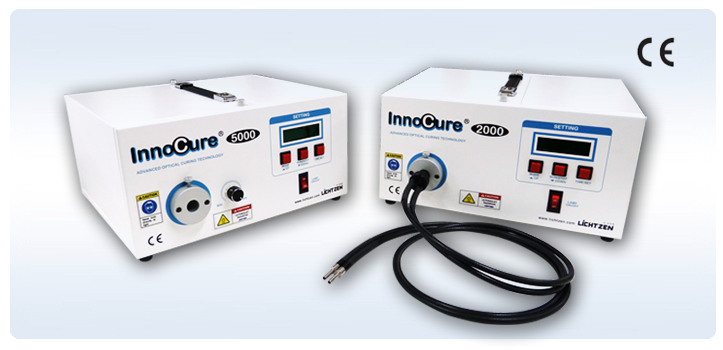

| MODEL |
INNO-CURE 2000 |
INNO-CURE 5000 |
REMARKS |
| Power Requirements |
220VAC, 50/60Hz |
|
| Input Power |
100W |
200W |
|
| UV Lamp |
Mercury Short Arc Lamp |
|
| Lamp Power |
80W |
100W |
|
| Lamp Life |
2,000HR |
2,000HR |
|
| UV Intersity |
Approx.2,000mW/㎠ |
Approx.5,000mW/㎠ |
@365mm[peak] |
Total UV
Output Energy |
Approx.3,000mW/㎠ |
Approx.7,000mW/㎠ |
250~450mm |
| Intensity Adjustment |
Not available |
Manual, 0~100% |
|
| Power Supply |
Electronic Ballast |
|
| Control Method |
Microprocessor Control |
|
| Warming up time |
2Minutes |
|
| Operation Mode |
Auto Mode : Shutter control by memorized time
Manual Mode : Shutter control by manual
Pulse Mode : Periodic shutter control by memorized time interval |
Standard |
| Mode Adjustment |
Auto Mode -> Manual Mode -> Pluse Mode -> Operating Time -> Turn On
Time, Timer Set Mode |
|
| Foot Pedal |
○ |
○ |
Shutter Open
/ Close |
| Light Guides |
Liquid Light Guide Type |
|
| 1(Branch)×5mm(φ)×1,000mm(L) |
Standard |
| 2(Branch)×5mm(φ)×1,000mm(L) |
Option |
| 3(Branch)×5mm(φ)×1,000mm(L) |
| 4(Branch)×5mm(φ)×1,000mm(L) |
| In addition to above specification, ohter specification also available |
| Safety |
Automatic power off feature when cover opened or Overheated during operation |
|
| Dimensions |
250(W)×275(D)×180(H)mm |
210(W)×300(D)×300(H)mm |
|
| Weight |
6.0kgs |
8.4kgs |
|
|
 |
 |
| |

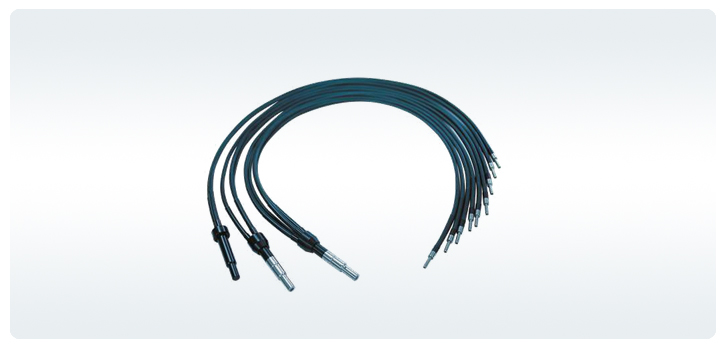

| MODEL |
Branch No. |
Specifications |
| LS13-1000 |
1 |
3mm(Φ)×1,000mm(L) Liquid Light Guide |
| LS13-1500 |
3mm(Φ)×1,500mm(L) Liquid Light Guide |
| LS13-2000 |
3mm(Φ)×2,000mm(L) Liquid Light Guide |
| LS15-1000 |
5mm(Φ)×1,000mm(L) Liquid Light Guide |
| LS15-1500 |
5mm(Φ)×1,500mm(L) Liquid Light Guide |
| LS15-2000 |
5mm(Φ)×2,000mm(L) Liquid Light Guide |
| LS18-1000 |
8mm(Φ)×1,000mm(L) Liquid Light Guide |
| LS18-1500 |
8mm(Φ)×1,500mm(L) Liquid Light Guide |
| LS18-2000 |
8mm(Φ)×2,000mm(L) Liquid Light Guide |
| LS23-1000 |
2 |
3mm(Φ)×1,000mm(L) Liquid Light Guide |
| LS23-1500 |
3mm(Φ)×1,500mm(L) Liquid Light Guide |
| LS23-2000 |
3mm(Φ)×2,000mm(L) Liquid Light Guide |
| LS33-1000 |
3 |
3mm(Φ)×1,000mm(L) Liquid Light Guide |
| LS33-1500 |
3mm(Φ)×1,500mm(L) Liquid Light Guide |
| LS33-2000 |
3mm(Φ)×2,000mm(L) Liquid Light Guide |
| LS43-1000 |
4 |
3mm(Φ)×1,000mm(L) Liquid Light Guide |
| LS43-1500 |
3mm(Φ)×1,500mm(L) Liquid Light Guide |
| LS43-2000 |
3mm(Φ)×2,000mm(L) Liquid Light Guide |
|
|
|
|
|
