> Products > MIR System

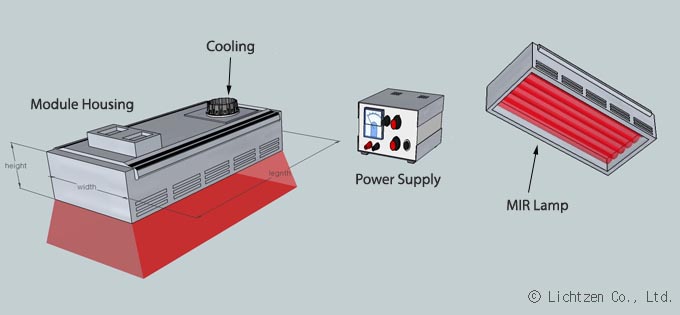

	Easy to install or apply by consist of compacted MIR Module Unit and Power Supply.
	Easy to build an application system by standardized of various size and capacity.
	Easy to build a drying system, even though there are no knowledge for drying technology in the fields of Printing, Coating, FPD, and etc.

	Production equipment’s manufacturing cost could be reduce by adopting required MIR module and power supply.
	Easy to interface for peripheral systems by supporting of various input and output signal.

Description		Model (Size & Array)
Description		MS4-8	MS3-6	MS6-13	MS9-19	MS12-13	MS21-25	MS12-13
Module Housing
Module Dimension	Length (L)	1070	1070	1070	1070	1000	1000	1000
	Width (W)	200	200	400	900	460	460	460
	Height (H)	350	350	350	350	350	350	350
Lamp Array		Horizontal	Horizontal	Horizontal	Horizontal	Column	Column	Column
Housing Material (SUS / Steel)		○	○	○	○	○	○	○
Actual Drying Width (mm)		600	600	600	600	800	800	800
MIR Lamp	Heating Length (mm)	700	700	700	700	350	350	350
	Overall Length (mm)	850	850	850	850	500	500	500
	Lamp Wattage (W)	2100	2100	2100	2100	1050	1050	1050
	Wattage / Cm (W/Cm)	30 W/Cm
	Lamp Voltage (V)	110	110	110	110	55	55	55
Module Capacity	Lamp Quantity (EA)	4	3	6	9	12	24	12
	Module Capacity (kW)	8.4	6.3	12.6	18.9	12.6	25.2	12.6
	Power Input	220V, 1P	220V, 3P	220V, 3P	220V, 3P	220V, 3P	220V, 3P	220V, 3P
Air Cooling		○	○	○	○	○	○	○
Reflector (SUS / Aluminum)		○	○	○	○	○	○	○
Non-Explosion structure (Optional)		TBA	TBA	TBA	TBA	TBA	TBA	TBA

※ Remark

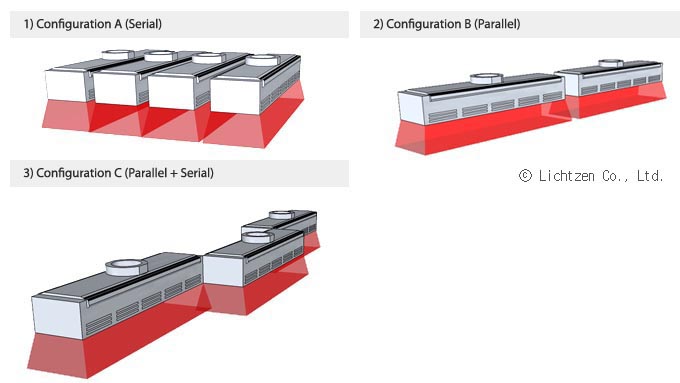

1. The array method for MIR Lamps could be apply according to customer’s requested configuration or suggestion.
2. System Length = Variable, System Width : (Chamber type = Module length + 300 mm), (Module type = Module length),
2. System Height = 800 mm + variable.

Power Supply
Input Power		AC220V, 1P/3P, 60 Hz
SCR	Model	LT-2050A	LT-2030A	LT-2050A	LT-2075A	LT-2030A	LT-2050A	LT-2050A
	Capacity (A)	50A	30A	50A	75A	30A / 30A	50A / 50A	50A / 50A
Heating Zone control
Control Interface	Control Signal (External -> Unit)	Remote (External) control and monitoring by PLC or Automation system (5 ~ 24V contact)
		Lamp On command
		Lamp Off command
		Power Output Control (0 ~ 100)
	Status Signal (Unit -> External)	Lamp lit on signal
		Lamp lit on fail signal
		Cooling fan error signal
		Over temperature error signal
		Over current signal
Operation		Auto / Manual
HMI (Human Machine Interface)		Touch Screen (Optional)
Dimension		TBA	TBA	TBA	TBA	TBA	TBA	TBA
Box Material		Stainless Steel or Steel (Optional)
Weight (kg)		TBA	TBA	TBA	TBA	TBA	TBA	TBA
Non-Explosion structure (Optional)		TBA	TBA	TBA	TBA	TBA	TBA	TBA

※ Notice
1. Above specification can be changed without notification for our quality improvement.
2. Except for above specification, it could be manufacture according to customer’s requirements.

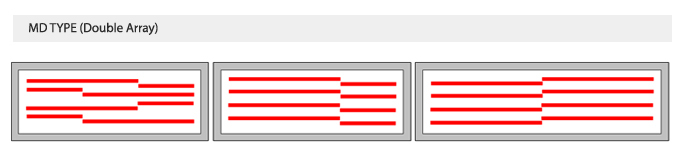

Description		Model (Size & Array)
Description		MD4-13		MD3-11		MD6-19		MD3-13	MD6-25
Module Housing
Module Dimension	Length (L)	1470		1470		1470		1820	1820
	Width (W)	300		300		600		900	900
	Height (H)	350		350		350		350	350
Lamp Array		횡		횡		횡		횡	종
Housing Material (SUS / Steel)		○		○		○		○	○
Actual Drying Width		950		950		950		1300	1300
MIR Lamp	Heating Length (mm)	700	350	700	350	700	350	700	700
	Overall Length (mm)	850	500	850	500	850	500	850	850
	Lamp Wattage (W)	2100	1050	2100	1050	2100	1050	2100	2100
	Wattage / Cm (W/Cm)	30 W/Cm
	Lamp Voltage (V)	110	55	110	55	110	55	110	110
모듈 용량	Lamp Quantity (EA)	4	4	3	3	6	6	6	12
	Capacity (kW)	8.4	4.2	6.3	4.2	12.6	6.3
	Module Capacity	220V, 1P		220V, 3P		220V, 3P		220V, 3P	220V, 3P
	Power Input	220V, 1P		220V, 3P		220V, 3P		220V, 3P	220V, 3P
Air Cooling		○		○		○		○	○
Reflector (SUS / Aluminum)		○		○		○		○	○
Non-Explosion structure (Optional)		TBA		TBA		TBA		TBA	TBA

Power Supply
Input Power		AC220V, 1P/3P, 60 Hz
SCR	Model	LT-2075A	LT-2050A	LT-2075A	LT-2050A	LT-2100A
	Capacity (A)	75A	50A	75A	50A	100A
Heating Zone control		1 Zone	1 Zone	1 Zone	1 Zone	1 Zone
Control Interface	Control Signal (External -> Unit)	Remote (External) control and monitoring by PLC or Automation system (5 ~ 24V contact)
		Lamp On command
		Lamp Off command
		Power Output Control (0 ~ 100)
	Status Signal (Unit -> External)	Lamp lit on signal
		Lamp lit on fail signal
		Cooling fan error signal
		Over temperature error signal
		Over current signal
Operation		Auto / Manual
HMI (Human Machine Interface)		Touch Screen (Optional)
Dimension		TBA	TBA	TBA	TBA	TBA
Box Material		Stainless Steel or Steel (Optional)
Weight (kg)		TBA	TBA	TBA	TBA	TBA
Non-Explosion structure (Optional)		TBA	TBA	TBA	TBA	TBA

※ Notice
1. Above specification can be changed without notification for our quality improvement.
2. Except for above specification, it could be manufacture according to customer’s requirements.

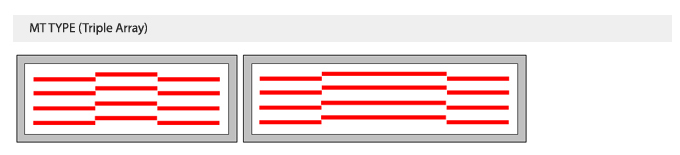

Description		Model (Row & Capacity)
Description		MT03-10	MT6-19	MT9-28	MT3-13		MT6-25		MT9-38		MT3-19	MT6-38
Module Housing
Module Dimension	Length (L)	1520	1520	1520	1870		1870		1870		2570	2570
	Width (W)	300	600	900	300		600		900		600	900
	Height (H)	350	350	350	350		350		350		350	350
Lamp Array		Horizontal	Horizontal	Horizontal	Horizontal		Horizontal		Horizontal		Horizontal	Horizontal
Housing Material (SUS / Steel)		○	○	○	○		○		○		○	○
Actual Drying Width			950	950	1300		1300		1300		2000	2000
MIR Lamp	Heating Length (mm)	350	350	350	700	350	700	350	700	350	700	700
	Overall Length (mm)	500	500	500	850	500	850	500	850	500	850	850
	Lamp Wattage (W)	1050	1050	1050	2100	1050	2100	1050	2100	1050	2100	2100
	Wattage / Cm (W/Cm)	30 W/Cm
	Lamp Voltage (V)	55	55	55	110	55	110	55	110	55	110	110
Module Capacity	Lamp Quantity (EA)	9	18	27	3	6	6	12	9	18	9	18
	Capacity (kW)				6.3	6.3	12.6	12.6	18.9	18.9
	Module Capacity (kW)	9.45	18.9	28.35	12.6		25.2		37.8		18.9	37.8
	Power Input	220V, 3P	220V, 3P	220V, 3P	220V, 3P		220V, 3P		220V, 3P		220V, 3P	220V, 3P
Air Cooling		○	○	○	○		○		○		○	○
Reflector (SUS / Aluminum)		○	○	○	○		○		○		○	○
Non-Explosion structure (Optional)		TBA	TBA	TBA	TBA		TBA		TBA		TBA	TBA

Power Supply
Input Power		AC220V, 1P/3P, 60 Hz
SCR	Model	LT-2050A	LT-2075A	LT-2100A	LT-2050A	LT-2100A	LT-2075A	LT-2075A	LT-2075A
	Capacity (A)	50A	75A	100A	50A	100A	75A - 2	75A	75A - 2
Heating Zone control		1 Zone	1 Zone	1 Zone	1 Zone	1 Zone	3 Zone	3 Zone	3 Zone
Control Interface	Control Signal (External -> Unit)	Remote (External) control and monitoring by PLC or Automation system (5 ~ 24V contact)
		Lamp On command
		Lamp Off command
		Power Output Control (0 ~ 100)
	Status Signal (Unit -> External)	Lamp lit on signal
		Lamp lit on fail signal
		Cooling fan error signal
		Over temperature error signal
		Over current signal
Operation		Auto / Manual
HMI (Human Machine Interface)		Touch Screen (Optional)
Dimension		TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA
Box Material		Stainless Steel or Steel (Optional)
Weight (kg)		TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA
Non-Explosion structure (Optional)		TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA

※ Notice
1. Above specification can be changed without notification for our quality improvement.
2. Except for above specification, it could be manufacture according to customer’s requirements.
