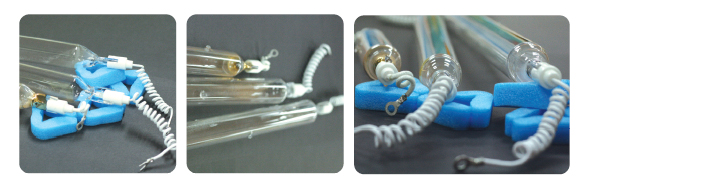

LMX Series UV Lamps are metal halide lamp based on high pressure mercury, optimum for liquid resister's exposure process.
UV ink's curing or exposure for photoengraving, by adding halogen compounds, radiate 300~400nm's wavelength sufficiently. |
|
| |
LGX UV LAMPS Series is afilliates of metal halide lamps and radiate 400~450nm wavelength's abundunt UV radiations. Optimum for
photoengraving process. |
|
 |
|
| |
|
|
 |
| |
| |
| MODEL |

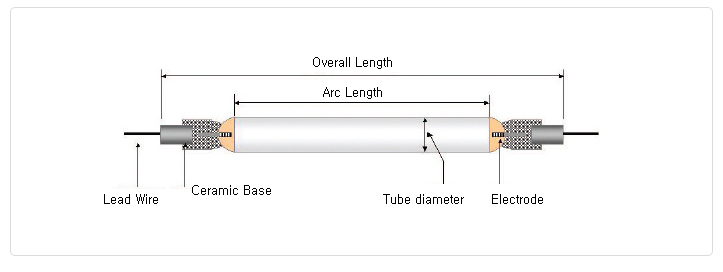

Arc
Length
(mm) |
Overall
Length
(mm) |
Lamp
Wattage
(W) |
Lamp
Volttage
(V) |
Lamp
Current
(A) |
Lamp
Load
(W/cm) |
Lamp Type |
Base Type |
| LGX-4000K |
135 |
250 |
4,000 |
290 |
14.0 |
300 |
노광용램프(SPG) |
E |
| LGX-5000K |
200 |
310 |
5,000 |
360 |
15.0 |
270 |
노광용램프(SPG) |
E |
| LMX-5000K |
150 |
240 |
5,000 |
420 |
13.2 |
320 |
노광용램프 |
E |
| LMX-7000K-K |
285 |
380 |
7,000 |
580 |
12.5 |
250 |
노광용램프 |
D |
| LMX-7000K-C |
285 |
380 |
7,000 |
620 |
12.0 |
260 |
노광용램프 |
D |
| LMX-8000K-C |
285 |
380 |
8,000 |
670 |
12.0 |
280 |
노광용램프 |
D |
| LMX-8000K-C |
140 |
250 |
8,000 |
570 |
14.0 |
570 |
노광용램프 |
D |
| LMX-10000K |
340 |
440 |
10,000 |
700 |
15.0 |
310 |
노광용램프 |
D |
| Special order production is available. |
|
| |
 |
|
|
|
|
