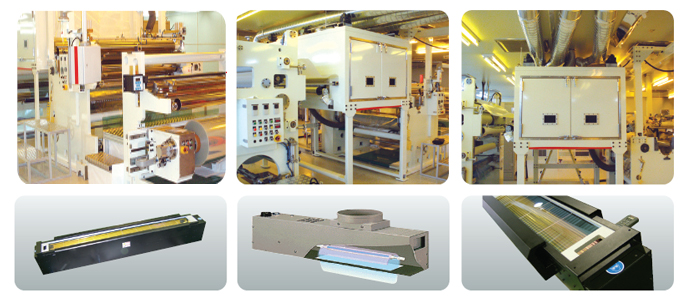

Various optical films (Prism sheet, reflector sheet, diffusion sheet, etc) |
|
Various graphic fields (Offset, Gravure, opv, screen, etc) |
|
PDP surface UV Curing process and other various UV Curing process. |
|
|
|
|

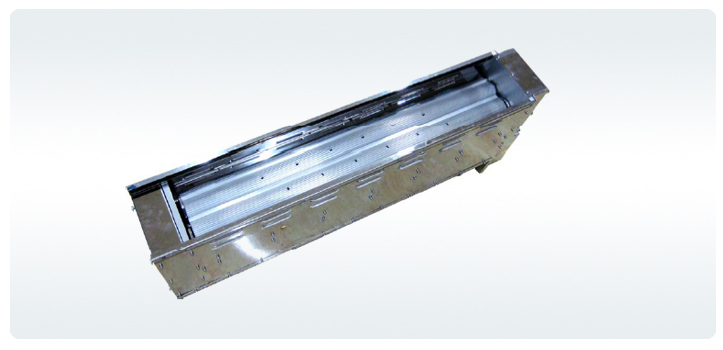

Easy installation with compact designed UV radiation module and power device. |
|
Standardized 1~40KW lamps modules are avalable for various applications. |
|
Easily construct UV Curing systems without basic concept about print machines, coating system, fpd producing
lines with this module UV system. |
|
|
Cost down the production cost by only using necessary UV Module and power device. |
|
Supporting various interface for connecting to other system. |
|
Prevent heat damage of substrate's surface by operating shutter open when in operation and close when in pause. |
|
Built-in shutter at inner of head lamps do open/close process and optimum at roll-to-roll process. |
|
Easy lamp exchange by applied sliding type's lamp housing. |
|
|
|
Description |
UVMH401
UVMF401 |
... |
UVMH1001
UVMF1001 |
UVMH1201
UVMF1201 |
UVMH1401
UVMF1401 |
UVMH1601
UVMF1601 |
UVMH1801
UVMF1801 |
UVMH2001
UVMF2001 |
option |
Module
Size |
(L) |
747 |
... |
1,347 |
1,547 |
1,747 |
1,947 |
2,147 |
2,347 |
|
(W) |
505 |
... |
505 |
505 |
505 |
505 |
505 |
505 |
|
(H) |
205 |
... |
247 |
247 |
247 |
247 |
247 |
247 |
|
Module material |
[SUS or Steel] |
|
Valid curing
width (mm) |
300 |
... |
900 |
1,050 |
1,200 |
1,400 |
1,600 |
1,800 |
|
UV
LAMP |
Mercury |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
Metal
Halide |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
Arc Length |
400 |
... |
1,000 |
1,200 |
1,400 |
1,600 |
1,800 |
2,000 |
2,200 |
Overall
Length |
520 |
... |
1,120 |
1,320 |
1,520 |
1,720 |
1,920 |
2,120 |
2,320 |
Lamp Load |
60~160 |
○ |
Lamp
Power |
4 |
... |
10 |
12 |
14 |
16 |
18 |
20 |
○ |
Cooling Type |
Forced Air-cooling |
850 |
Exhaust Fan |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
Reflector |
Aluminum |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
Cold Mirror |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
Cold Filter |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
Shutter |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
Shutter
Operation Type |
Pneumatic Air |
|
Power Supply |
- Electronic Ballast
- Magnetic UV Transformer
- Condenser Type : Constant Current Control
- Choke Type : Constant Wattage Control
- Hybrid UV Transformer
- Feedback Type : Variable Power Control |
○ |
Control
interface |
Control
signal |
- PLC or other remote (external) control signals for auto control system
- Lamp ON signal
- Lamp OFF signal
- Shutter OPEN signal
- Shutter CLOSE siganl |
Standard |
Output
signal |
- Standby signal
- Lamp on confirming signal
- Lamp on Failure signal
- Shutter error signal
- Cooling fan error signal
- Overheat alarm signal |
Standard |
1. Above specification can be modified or changed without notice for improving products performance and quality.
2. In addition to above specification, other specification also available. |
|
|
|
|
|
