Microprocessor Control
Compact design
System design for user's convenience
High UV intensity
Excellent UV uniformity
Easy lamp exchange
Run time integration of UV Lamp
Turn on times integration of UV Lamp
UV intensity adjustment by stepping motor(63-step)
Remote interface for peripheral equipments
Auto / Remote / Manual Mode
Various error siganl output for safety operation and system monitoring
External interface for PLC or industrial PC


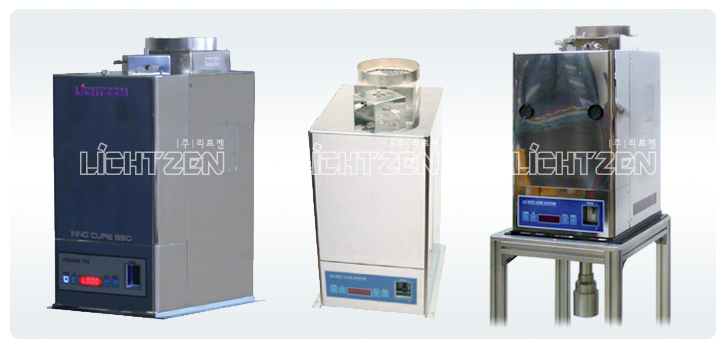

MODEL INNO-CURE
850P 		INNO-CURE
850R		 INNO-CURE
1500P 		INNO-CURE
1500R
UV Irradiation Direction

Perpendicular type

Reflection type

Perpendicular type

Reflection type
Controller
& Lamp Housing 		One body One body Separate body Separate body
Apperance

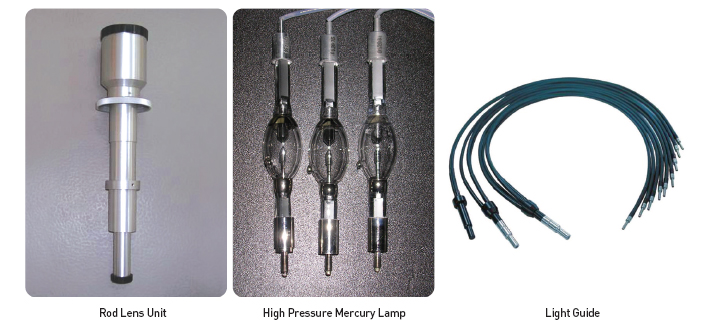

UV Lamp High pressure mercury Shot Arc UV Lamp
(LZ 85002MA) 		High pressure mercury Shot Arc UV Lamp
(LZ 85000FUA)
Lamp Life 1,500Hr
UV Intensity 10,000mW/㎠(@365mm)
UV
intensity
with Rod

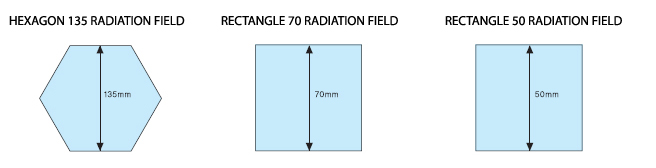

Lens Unit 		Hexa-
gonal
135mm		 365mm 160mW/㎠(@380mm) 130mW/㎠(@260mm) 220mW/㎠(@260mm) 175mW/㎠(@260mm)
405mm 280mW/㎠(@380mm) 220mW/㎠(@260mm) 380mW/㎠(@260mm) 300mW/㎠(@260mm)
Quadr-
angular
70mm		 365mm 380mW/㎠(@90mm) 300mW/㎠(@90mm) 500mW/㎠(@90mm) 400mW/㎠(@90mm)
405mm 600mW/㎠(@90mm) 480mW/㎠(@90mm) 780mW/㎠(@90mm) 620mW/㎠(@90mm)
Quadr-
angular
50mm		 365mm 500mW/㎠(@90mm) 400mW/㎠(@90mm) 650mW/㎠(@90mm) 520mW/㎠(@90mm)
405mm 900mW/㎠(@90mm) 720mW/㎠(@90mm) 1,170mW/㎠(@90mm) 930mW/㎠(@90mm)
UV Intensity adjustment 63 Step (Stepping Motor)
System Control Microprocessor Control
Shutter Control Auto/Manual Mode
(Timer : 0.1sec ~ 999.9sec / 0.1sec Inteval)
Cooling Forced Air-cooling
Exteranl Interface Input Signal   Lamp ON/OFF
  Manual/Remote selection
  Shutter OPEN/CLOSE
  UV Intensity control
  Time reset
Output Signal   Lamp ON/OFF
  Lamp stabilization status
  Manual stabilization status
  Shutter OPEN/CLOSE status
  Ignition fail error
  Door open error
  Temperature error
  Shutter error
  Shutter orientation fail error
  Iris orientation fail error
  Various errors
Operation Mode Manual Mode System control by manual
Remote Mode System control by peripheral equipments
such as PLC, industrial PC, etc
Warming up time 5Minutes
Power supply   Stabilized power supply by microprocessor control
  Support of constant light output
Safety Door Interlock / Thermal Fuse / Air Filter
Dimension 250(W)×350(D)×550(H)mm
Operation Condition Ambient Temp. : 5~35℃ / Humidity : less than 70%
Power Requirements 110VAC or 220VAC, 50/60Hz
Weight Approx. 25Kgs Approx. 30Kgs



INNO-CURE 850 Series
Rod Lens Wavelength
(mm)		 INNO-CURE 850P INNO-CURE 850R
UV Intensity
(mW/㎠)		 Height
(mm)		 UV Intensity
(mW/㎠)		 Height
(mm)
Hexagonal
135mm		 365 160 380 130 260
405 280 380 220 260
Quadrangular
70mm		 365 380 90 300 90
405 600 90 480 90
Quadrangular
50mm		 365 500 90 400 90
405 900 90 720 90
INNO-CURE 1500 Series
Rod Lens Wavelength
(mm)		 INNO-CURE 1500P INNO-CURE 1500R
UV Intensity
(mW/㎠)		 Height
(mm)		 UV Intensity
(mW/㎠)		 Height
(mm)
Hexagonal
135mm		 365 220 260 175 260
405 380 260 300 260
Quadrangular
70mm		 365 500 90 400 90
405 780 90 620 90
Quadrangular
50mm		 365 650 90 520 90
405 1,170 90 930 90
TYPICAL APPLICATION

 - Semiconductor wafer exposure, FPD edge exposure
 - UV Curing for DVD & Blue ray bonding
 - UV edge exposure for FPD planels (LCD, PDP, etc), and other various FPD's
 - UV bonding and curing process )
 - Various SPOT UV Curing and surface treatment fields such as Semiconductor,
 - Communication, Display(LCD, PDP), and etc.
 - All manufacturing industries using UV curable adhesive, paints, bonds on
 - various parts bonding, curing, dry process.
