UV Flasher emission frequency is 10Hz and 100Hz, two types.

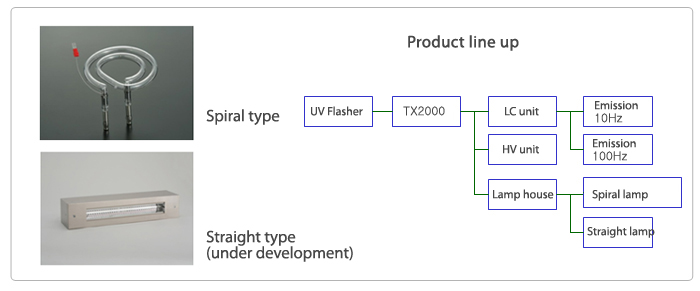

Lamp shape is also two types; one is spiral and the other straight.
Spiral lamp is suitable to be irradiated for stopped objects in the rage from φ100mm to φ300mm.
Straight lamp is suitable for mass irradiation of the objects being conveyed. Straight lamp has 500mm of arc length at max & lamps can be serially arranged if longer width is required.

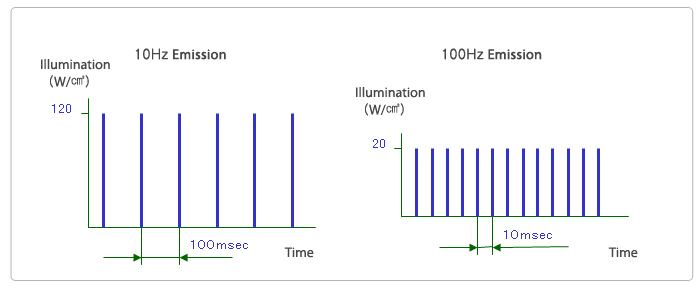

The UV emission frequency is 10Hz and 100Hz, two types. Lamp voltage 3.6KV. Light intensity at the irradiation distance 50mm is mainly -
10Hz (spiral) 120W/㎤
100Hz (straight) 20W/㎤

At this time the pulse duty is -
10Hz 200μsec
100Hz 80μsec

Thus a pulse of energy is -
10Hz 17mJ/pulse
100Hz 1.1mJ/pulse

Integrated light per 1 second is-
10Hz 170mJ / sec
100Hz 110mJ / sec
