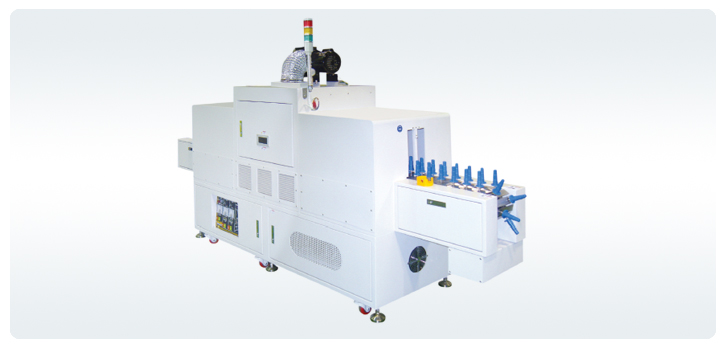

Tube, cosmetic bottle and 3D shaped object.
3D - radiation type - side and upper side.
Various shaped curved object UV Curing is available.
Supply respect to object's size, height and diameter.
Uniform radiation to edge and angualar part.
Adjustable conveyor speed.
Both mercury and metal halide lamp are available.
Built-in lamp hour meter, lamp off detect sensor.
Forced air cooling.


   Length of Conveyor    1,500~3,000mm
   Width of Conveyor    300~800mm
   UV Lamp Q'ty    2~4 (Mercury, Metal Halide)
※ Adjust the height of reflector and simple cleaning of inside of reflector. (Optional)
