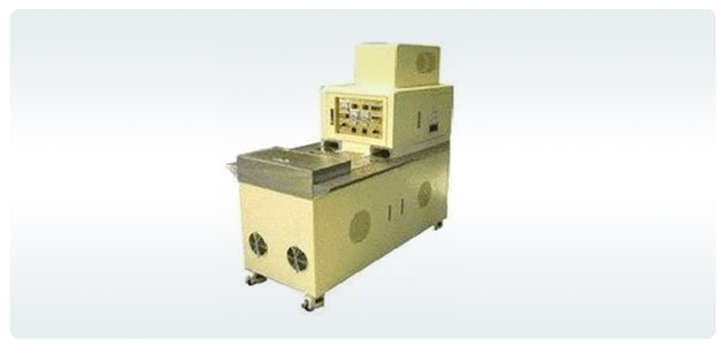

LZ-202 is the new item which loaded U turn type conveyor.
It is an excellent of a low-temperature curing and it was designed for curing an electronic parts and semi-conductor chip
Decreasing heat of transmit materials surface by using specialized quartz tube and Safety for worker cause no leakage lights by installed reflector .
|
|
 |
| |
 |
Minimze working space by compact design. |
|
Low-temperature curing capability (under 70℃) |
|
Easy to exchange lamp with attached timer |
|
Solve the problem of the belt leaning as loding a special roller |
|
Sensing device for light-out |
|
Safety for worker(Cause no leakage lights by installes reflector) |
|
Decreasing heat or transmit materials surface by using specialized quartz tube. |
|
 |
| |
| Item |
Description |
Remark |
Product |
U Turn Type Conveyor UV Curing System |
|
Model |
LZ-U Series |
|
Application |
PCB, Electronic Parts |
|
General
Specification |
Dimension |
mm(L) × mm(W) × mm(H) |
|
| Loading Type |
Roll or Conveyor |
|
Curing Speed |
0 ~ 10 m/min |
|
| Curing Width |
TBD |
|
Conveyor Belt |
Mesh or SUS |
|
| System Control |
Manual or Sequence |
|
| Exhaust Type |
Fan |
|
UV LAMP |
Lamp |
High-Pressure Mercury Lamp(Metal Halide UV Lamp) |
|
Q’ty |
1 |
|
| Overall Length |
120 mm ~ 2220 mm |
TBD |
| Arc Length |
100 mm ~ 2100 mm |
TBD |
| Wattage/Cm |
80, 100, 120 ~ 160 |
TBD |
| Wavelength Range |
250 ~ 420nm
(Peak wavelength: 365nm) |
|
Cooling Type |
Forced Air Cooling |
|
Power |
220V or 380V, 1P or 3P, 50Hz or 60 Hz |
|
Color |
Standard (Ivory) |
|
Warranty |
12 Months (Excluded Supplies) |
|
| * Specification can be changed according to customer’s requirements and product features. |
|
|
|
|
|
|
