It removes a blow as function of developted absortion system.
High-low controls of lamp is possible to load a outer updown equipment.
Decreasing heat of transmit materials surface by using specialized quartz tube and Safety for worker cause no leakage lights by installed reflector .


It is for B.L.U
Loading a static electricity remover.
Minimize a foreign substance as loading a special coating belt.
Remove a blow as function of developed absortion system
High-low controls of lamp is possible as loading a outer updown equipment .
Decreasing heat of transmit materials surface by using specialized quartz tube.
Possibility an accurate control as internal temperature and digitalization of speed control.


Item Description Remark
Product

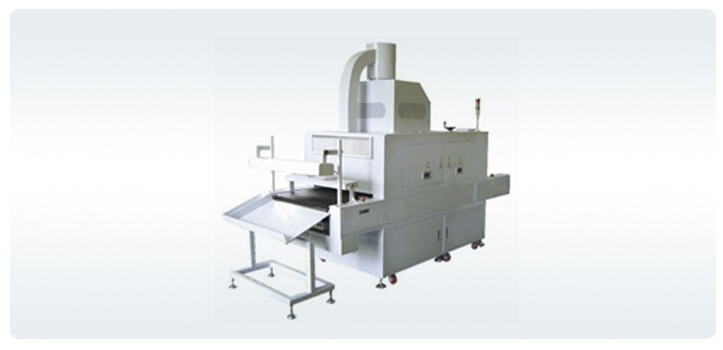

UV Curing System For BLU


Model

LZ-U Series


Application

BLU



General
Specification

Dimension

mm(L) × mm(W) × mm(H)


Loading Type

Roll or Conveyor



Curing Speed

0 ~ 10 m/min


Curing Width

TBD



Conveyor Belt

Mesh or SUS


System Control

Manual or Sequence


Exhaust Type Fan

UV LAMP

 Lamp

High-Pressure Mercury Lamp(Metal Halide UV Lamp)



Q’ty

1


Overall Length

120 mm ~ 2220 mm

 TBD
Arc Length

100 mm ~ 2100 mm

 TBD
Wattage/Cm

80, 100, 120 ~ 160

 TBD
Wavelength Range

250 ~ 420nm
(Peak wavelength: 365nm)



Cooling Type

 Forced Air cooling system

Power

220V or 380V, 1P or 3P, 50Hz or 60 Hz



Color

 Standard (Ivory)

Warranty

12 Months (Excluded Supplies)


* Specification can be changed according to customer’s requirements and product features.
