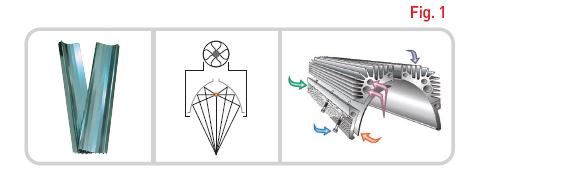

Elloptical Focus Type : Fig.1 |
 |
Type of concentrating UV Lights to one point and commonly used in UV Curing machines (Print curing, screen printing) |
|
|
|

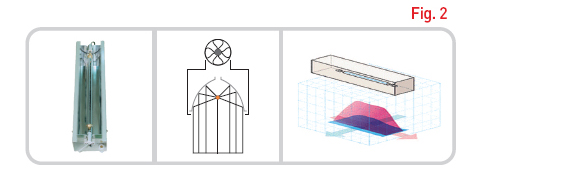

Paralleled Type : Fig.2 |
|
Type of Reflecting UV Lights Paralleled and Optimum for small sized UV Curing machines
(Bonding and Adhesion at Semiconductor Field) |
|
|
|
|
|

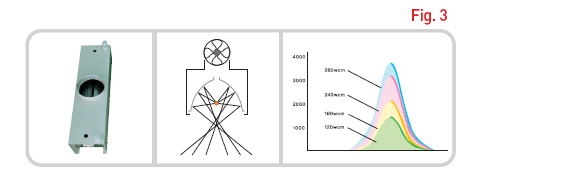

Diffuse Type : Fig.3 |
|
70% of UV Radiation of UV Lamps are Radiated to the Direction of Reflecor, so, by Adopting Elliptical or Parallel Type of
Reflector can Higher UV Efficiency. |
|
|
|
|
Other
UV Reflectors
