OLED/AMOLED

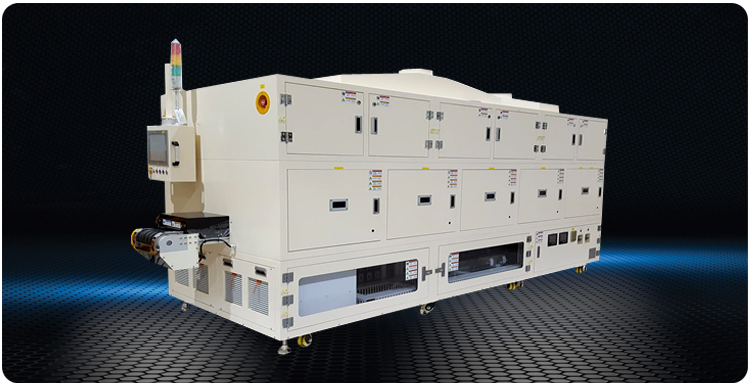

UV Module system UV SYSTEMS

Features
Adhesive process of UV by using OCR or OCA between Window Glass and touch panel
Electrical stabilizer can control lamp power, volume, and quantity of the light. (with CE mark and 10~100% control available)
Both UV mercury lamp and UV metal halide lamp can be used (LICHTZEN, self-manufacturing)
90% of irradiation uniformity
Simple and easy control in touch panel (control convenience)
Self-manufactured conveyor (Equipped Auto tension module)
Feedback system to sustain equivalent irradiation while production.

System specification
Categorization Content (description)
LAMP TYPE METAL HAIDE LAMP -4EA
LAMP POWER 3~5KW/LAMP
REFLECTOR TYPE COLD MIRROR + HOT MIRROR OR NCF (OPTION)
WAVELENGTH 200~420nm
TOUCH SCREEN & PLC OPTION
Size 3210mm * 1700mm*1850mm (L*W*H)
