Nitrogen Purge

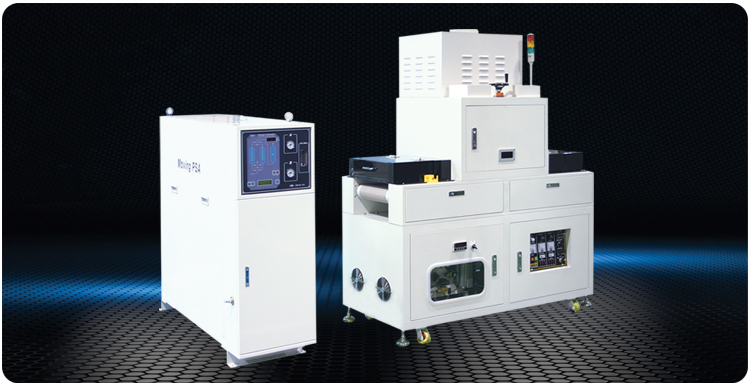

UV Module system UV SYSTEMS
Features
Application of pet film, glass, paper, pvd, floor film coating and printing field.
Nitrogen(N2) Purge improve the quality of UV Curing.
Prohibit the inflow of oxygen from outside (prevent oxidation of product's surface).
Adopt special quartz window.
Prolong lamp's life time by preventing contamination of lamp and reflector, and prevent uv energy loss.
Cost down effect by using less amount of nitrogen gas.
Easy lamp exchange by applied sliding type's lamp housing.
Adopt cold mirror and hot mirror.
Uv lamps : medium/high pressure mercury and metal halide lamp(3~16KW).
Forced air cooling system.
Width of curing : 200~1,500mm

Dimension
       Length of Conveyor 2,000~4,000mm
       Width of Conveyor 200~1,500mm
       UV Lamp Q'ty 2~4 (Mercury, Metal Halide)
※ Adjust the height of reflector and simple cleaning of inside of reflector. (Optional)
