Mercury(Hg) Lamp

UV LAMP UV LAMP

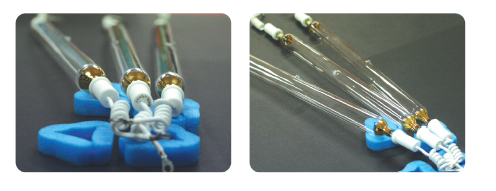

  High pressure mercury UV Lamps are commonly used lamp which radiated 365nm wavelength UV radiation sufficiently, and can be supplied from 50w/cm to 200w/cm for order product, mainly used in coating, drying, curing and printing process.


Specifications
■ Model Selection : LH-Arc Length / Wattage- Base Type ex) LH-100 / 800-A
MODEL Arc
Length
(mm)		 Overall
Length
(mm)		 80W/cm 100W/cm 120W/cm 140W/cm
7.5A 9.0A 10.5A 12.0A
Lamp
Wattage
(W)		 Lamp
Volttage
(V)		 Lamp
Wattage
(W)		 Lamp
Volttage
(V)		 Lamp
Wattage
(W)		 Lamp
Volttage
(V)		 Lamp
Wattage
(W)		 Lamp
Volttage
(V)
LH-Arc
Length/Lamp
Wattage-Base Type		 100 220 800 120 1,000 125 1,200 133 1,400 130
140 260 1,120 170 1,400 175 1,680 180 1,960 185
200 320 1,600 240 2,000 250 2,400 260 2,800 260
250 370 2,000 300 2,500 320 3,000 320 3,500 330
300 420 2,400 360 3,000 380 3,600 390 4,200 400
350 470 2,800 420 3,500 440 4,200 450 4,900 460
400 520 3,200 480 4,000 500 4,800 520 5,600 530
450 570 3,600 540 4,500 560 5,400 580 6,300 590
500 620 4,000 600 5,000 625 6,000 650 7,000 660
550 670 4,400 660 5,500 690 6,600 710 7,700 720
600 720 4,800 720 6,000 750 7,200 770 8,400 790
650 770 5,200 780 6,500 810 7,800 840 9,100 850
700 820 5,600 840 7,000 880 8,400 900 9,800 920
800 920 6,400 960 8,000 1,000 9,600 1,030 11,200 1,050
900 1,020 7,200 1,080 9,000 1,130 10,800 1,160 12,600 1,180
1,000 1,120 8,000 1,200 10,000 1,250 12,000 1,290 14,000 1,310
1,100 1,220 8,800 1,320 11,000 1,370 13,200 1,410 15,400 1,450
1,200 1,320 9,600 1,440 12,000 1,500 14,400 1,540 16,800 1,580
1,300 1,420 10,400 1,560 13,000 1,620 15,600 1,700 18,200 1,700
1,400 1,520 11,200 1,680 14,000 1,750 16,800 1,800 19,600 1,840
1,500 1,620 12,000 1,800 15,000 1,870 18,000 1,930 21,000 1,970
1,550 1,670 12,400 1,860 15,500 1,940 18,600 1,990 21,700 2,030
1,600 1,720 12,800 1,920 16,000 2,000 19,200 2,060 22,400 2,100
1,700 1,820 13,600 2,040 17,000 2,130 20,400 2,180 23,800 2,230
1,800 1,920 14,400 2,160 18,000 2,250 21,600 2,310 25,200 2,360
1,900 2,020 15,200 2,280 19,000 2,370 22,800 2,440 26,600 2,500
2,000 2,120 16,000 2,400 20,000 2,500 24,000 2,570 28,000 2,620
2,200 2,320 17,600 2,640 22,000 2,750 26,400 2,830 30,800 2,900
Special order production is available.
