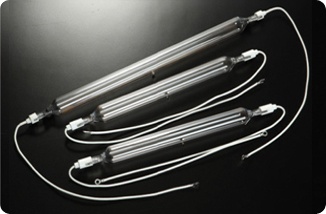

Metal Halide(Ga) Lamp

UV LAMP UV LAMP
  Galium UV Lamps wavelength is 420mm and it radiate remote long UV wavelength area, optinum for thick(over 30㎛) tinted paints or coating resin's curing with higher UV energy and Penentrate deeply to resin and uniform the intensity of illumination.


Specifications

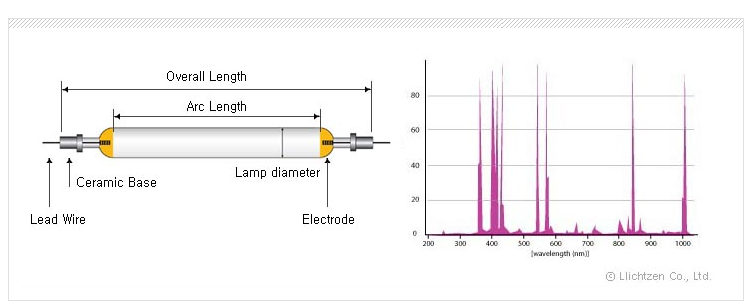

■ Model Selection : LH-Arc Length / Wattage- Base Type ex) LG-100 / 800-A
MODEL Arc
Length
(mm)		 Overall
Length
(mm)		 80W/cm 100W/cm 120W/cm 140W/cm
7.5A 9.0A 10.5A 12.0A
Lamp
Wattage
(W)		 Lamp
Volttage
(V)		 Lamp
Wattage
(W)		 Lamp
Volttage
(V)		 Lamp
Wattage
(W)		 Lamp
Volttage
(V)		 Lamp
Wattage
(W)		 Lamp
Volttage
(V)
LG-Arc
Length/Lamp
Wattage-Base Type		 100 220 800 120 1,000 125 1,200 133 1,400 130
140 260 1,120 170 1,400 175 1,680 180 1,960 185
200 320 1,600 240 2,000 250 2,400 260 2,800 260
300 420 2,400 360 3,000 380 3,600 390 4,200 400
400 520 3,200 480 4,000 500 4,800 520 5,600 530
500 620 4,000 600 5,000 625 6,000 650 7,000 660
600 720 4,800 720 6,000 750 7,200 770 8,400 790
700 820 5,600 840 7,000 880 8,400 900 9,800 920
800 920 6,400 960 8,000 1,000 9,600 1,030 11,200 1,050
900 1,020 7,200 1,080 9,000 1,130 10,800 1,160 12,600 1,180
1,000 1.120 8,000 1,200 10,000 1,250 12,000 1,290 14,000 1,310
1,200 1,320 9,600 1,440 12,000 1,500 14,400 1,540 16,800 1,580
1,400 1,520 11,200 1,680 14,000 1,750 16,800 1,800 19,600 1,840
1,600 1,720 12,800 1,920 16,000 2,000 19,200 2,060 22,400 2,100
1,800 1,920 14,400 2,160 18,000 2,250 21,600 2,310 25,200 2,360
Model Selection : LG-arc Length / Wattage-Base Type (ex, LG-100/800-A)
Special order production is available.
