UV light cleaning and reforming

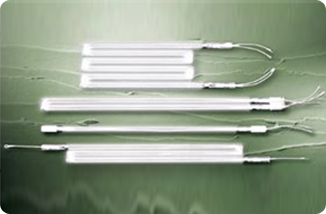

UV LAMP UV LAMP
  It is UV light cleaning and reforming for various physical, chemical impurities in LOD, OLED, semiconductor. It should be eliminated as it could affect serious damage. UV lamp eliminates any impurities effectively when the thickness of layer is under A.

Usage
1. Cleaning and reforming of LOD, PDP, OLED and Wafer
1. surface.
2. Optical glass, lead frame
3. Acrylic, PP and PE film
4. Functional plastics/new materials


(D)Shape Overall Length Arc Length Wattage
WUV 20DB 216mm 140mm 20
WUV 40DB 530mm 330mm 40
WUV 90DB 1030mm 880mm 90
WUV 110DB 1250mm 1100mm 110
WUV 200DB 1650mm 1600mm 200
(U)Shape Overall Length Arc Length Wattage
WUV 40UB 270mm 200mm 40
WUV 90UB 630mm 453mm 90
WUV 110UB 840mm 663mm 110
WUV 200UB 820mm 760mm 200
(N)Shape Overall Length Arc Length Wattage
WUV 90NB 290mm 255mm 90
WUV 110NB 380mm 300mm 110
WUV 200NB 640mm 488mm 200
(M)Shape Overall Length Arc Length Wattage
WUV 110NB 300mm 227mm 110
WUV 200NB 390mm 340mm 200
* Cooling system is a forced air - cooled or water cooled
