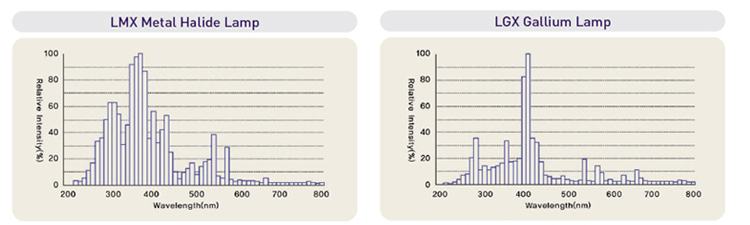

Metal Halide Lamps radiate
365mm wavelength mostly between 265mm to 420mm wavelength, order production
is available from 50w/cm to 180w/cm and radition efficiency is better
than mercury lamp, and apply to paint coating, drying, curing and
printing etc mostly.
|
|
 |
| |

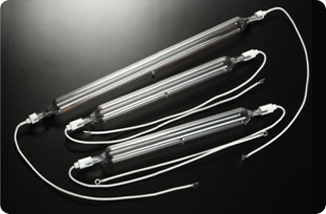

LMX Series UV Lamps are metal halide
lamp based on high pressure mercury, optimum for liquid resister's
exposure process.
UV ink's curing or exposure for hotoengraving, by adding halogen
compounds, radiate 300~400nm's wavelength sufficiently. |
|
LGX UV LAMPS Series
is afilliates of metal halide lamps and radiate 400~450nm wavelength's
abundunt UV radiations. Optimum for photoengraving process. |
|
 |
| |
|
 |
Specifications |
| MODEL |
Arc
Length
(mm) |
Overall
Length
(mm) |
Lamp
Wattage
(W) |
Lamp
Volttage
(V) |
Lamp
Current
(A) |
Lamp
Load
(W/cm) |
Lamp
Type |
Base
Type |
| LGX-4000K |
135 |
250 |
4,000 |
290 |
14.0 |
300 |
노광용램프(SPG) |
E |
| LGX-5000K |
200 |
310 |
5,000 |
360 |
15.0 |
270 |
노광용램프(SPG) |
E |
| LMX-5000K |
150 |
240 |
5,000 |
420 |
13.2 |
320 |
노광용램프 |
E |
| LMX-7000K-K |
285 |
380 |
7,000 |
580 |
12.5 |
250 |
노광용램프 |
D |
| LMX-7000K-C |
285 |
380 |
7,000 |
620 |
12.0 |
260 |
노광용램프 |
D |
| LMX-8000K-C |
285 |
380 |
8,000 |
670 |
12.0 |
280 |
노광용램프 |
D |
| LMX-8000K-C |
140 |
250 |
8,000 |
570 |
14.0 |
570 |
노광용램프 |
D |
| LMX-10000K |
340 |
440 |
10,000 |
700 |
15.0 |
310 |
노광용램프 |
D |
| Special order production is available.
|
|
|
