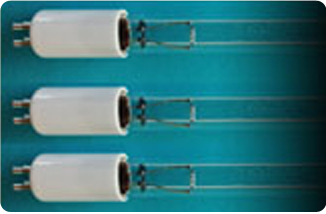

Maximize output and lifespan
of low voltage UV lamp. Mainly radiate 253.7nm and using for sewage
disposal plant, industrial water, purifying water and Ballast Water
Treatment System(BWTS). It also apply in all sterilization.
|
|
|
 |

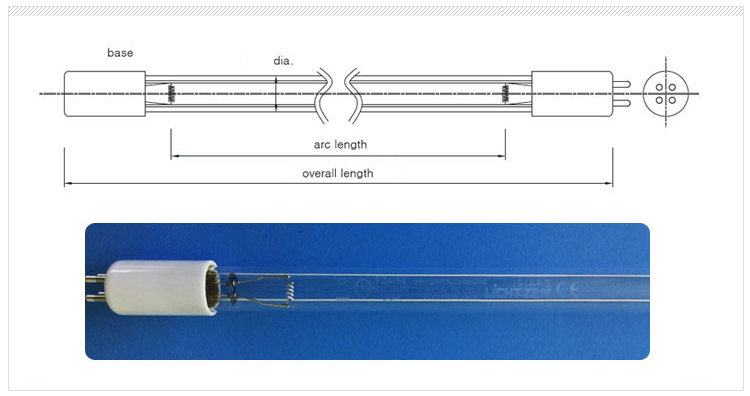

Lamp Diagram |
 |
|
|
Specifications |
| Model |
Arc Length(mm) |
Overall length(mm) |
Diameter
(mm) |
Voltage (V) |
Lamp current (A) |
Wattage (W) |
| GPH1554T5LCA/M12/4C |
1430 |
1555 |
15 |
180V |
800mA |
145 |
| GPH843T5LCA/HO/4C |
739 |
843 |
15 |
110V |
780mA |
80 |
| GIA1554T6LCA/2S13/4C |
1483 |
1554 |
19 |
134 |
1.8a |
240 |
| Model |
UVC watts |
μ/cm2@1M
|
Lifetime |
EOL Output |
| GPH1554T5LCA/M12/4C |
50 |
425 |
12000 |
80% |
| GPH843T5LCA/HO/4C |
29 |
265 |
12000 |
80% |
| GIA1554T6LCA/2S13/4C |
85 |
650 |
12000 |
80% |
|
|
|

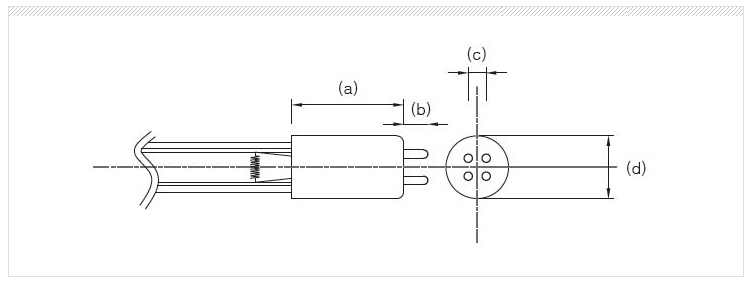

BASE |
 |
| Model |
(a) |
(b) |
(c) |
(d) |
| GPH1554T5LCA/M12/4C |
33.3 |
7.24 |
5.35 |
18.7 |
| GPH843T5LCA/HO/4C |
33.3 |
7.24 |
5.35 |
18.7 |
GIA1554T6LCA
3/4C
|
38 |
7.24 |
5.35 |
23 |
|
|
